Section 6.6: Why GPU-parallel simulation changed robot learning

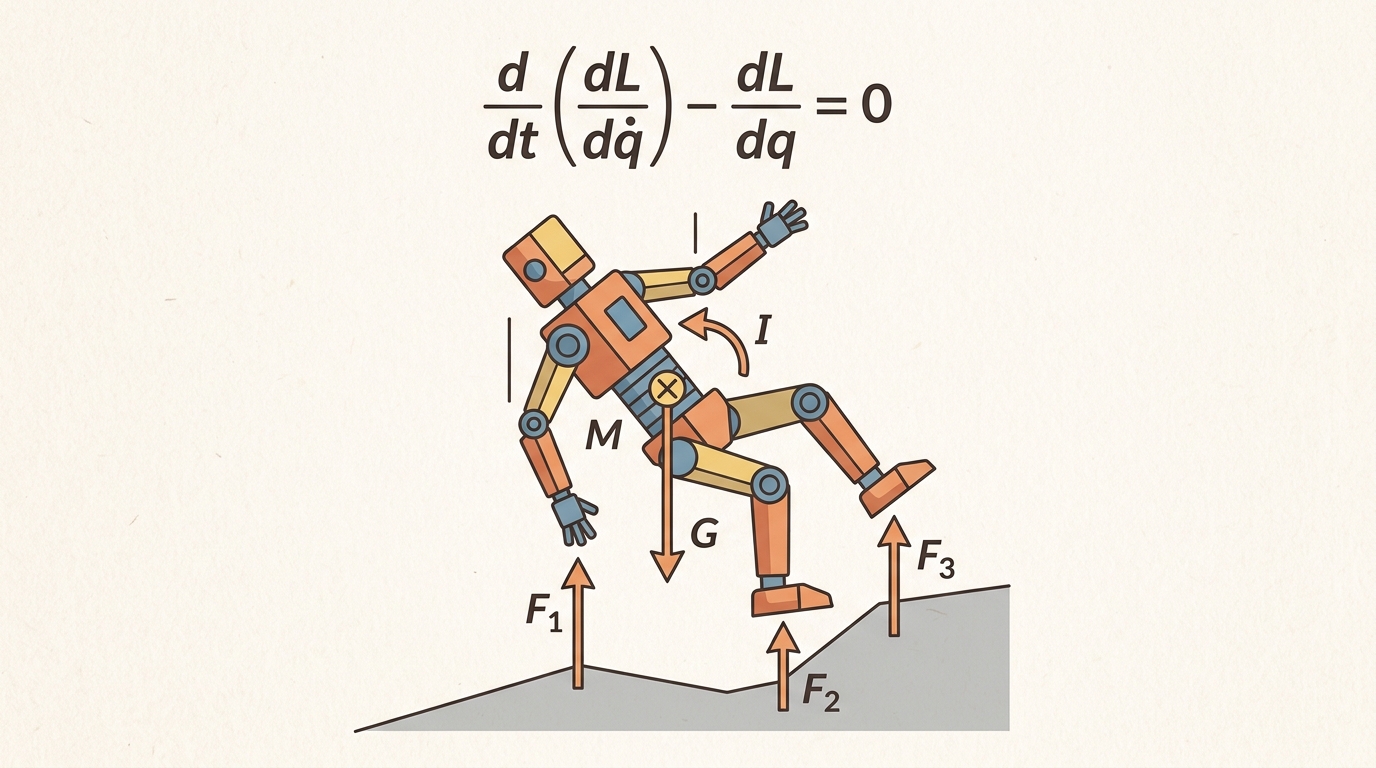

"When a million robots can fall, recover, and fall again before lunch, failure stops being expensive and starts being data."

A Parallel Policy Trainer

Before GPU-parallel simulation, the standard training loop for a locomotion or manipulation policy looked like this: launch one MuJoCo (Multi-Joint dynamics with Contact, a widely used physics engine for robot simulation) process, step the environment forward through its equations of motion, wait for the next state, send an action, and repeat for millions of steps. On a single CPU core that loop ran at roughly 500 to 2000 steps per second. A competitive locomotion policy required hundreds of millions of steps, so wall-clock time in days was normal. The bottleneck was not the neural network forward pass; experience collection dominated. GPU-parallel simulation attacks that bottleneck directly: instead of one sequential environment, it runs 4096 environments simultaneously under a single batched kernel. That same policy needs roughly 48 hours on one CPU core to collect enough experience; on a single GPU with 4096 parallel environments it takes under 30 minutes (as of 2024, on hardware such as an A100 or H100). Throughput jumps by roughly three orders of magnitude, and training time collapses from days to minutes. That shift made it practical to explore curriculum schedules, randomized terrain, and domain randomization at a scale that was previously unaffordable. Figure 6.6A captures this shift in spirit: the same robot failing, recovering, and failing again across many parallel worlds at once.

The technical contract for GPU-parallel simulation becomes a usable mental model in three moves: define the object of study, connect it to the agent loop, then test it with a compact implementation.

The practical question is direct: what must the agent know, what can it observe, what action is available, and what evidence shows that the action worked under the stated conditions?

Theory

The practical design rule is to make the interface inspectable before optimization begins: inputs, outputs, units, latency, bounds, and failure labels should all be visible in the saved artifact.

Worked Example: Vectorized Batch Rollout and the Coordinate Choice

To make that representation-to-action contract concrete, the worked example below replaces the abstract handoff with a runnable batch step you can trace line by line.

The change GPU simulation brought is that one stepped environment becomes \(N\) stepped environments under a single kernel call: \(x_{k+1}^{(i)} = f_\Delta(x_k^{(i)}, u_k^{(i)}, \theta^{(i)})\) for \(i = 1,\dots,N\). The example below shows the mechanism with NumPy as a stand-in for the GPU: the same physics step applied to a batch of pendulums with different initial conditions, stepped with fixed-shape arrays. On a GPU (MJX, Isaac, Brax) the identical code runs across thousands of environments in parallel because every environment does the same arithmetic with no data-dependent branching.

import numpy as np

g, L, dt = 9.81, 1.0, 0.02
N, steps = 4096, 500          # 4096 environments, 10 s each

rng = np.random.default_rng(0)
theta = rng.uniform(-1.0, 1.0, size=N)   # batched state: shape (N,)
omega = np.zeros(N)

# One vectorized symplectic-Euler step over the whole batch.
for _ in range(steps):
    omega = omega - dt * (g / L) * np.sin(theta)   # shape (N,) elementwise
    theta = theta + dt * omega

# Co-compute a validity check alongside the rollout: energy stays bounded.
E = 0.5 * L**2 * omega**2 + g * L * (1 - np.cos(theta))
print(f"stepped {N} envs x {steps} steps = {N*steps:,} transitions")
print(f"final energy  mean={E.mean():.4f}  std={E.std():.4f}  max={E.max():.4f}")
# Throughput is meaningful ONLY beside this bounded-energy check.

The single-line update stepping all \(N\) environments is the whole idea: homogeneous, branch-free work that a GPU executes as one batched kernel. The energy check co-computed in the same pass is the discipline the section insists on, throughput without a validity check is not evidence.

Maximal vs Minimal Coordinates: When to Use Each

The other axis that decides simulator behavior is how state is represented. MuJoCo (and MJX, Isaac) lean toward maximal coordinates with constraints, while Pinocchio uses minimal (generalized) coordinates. The two are duals, and the right choice depends on the workload.

Constraint drift matters on a real robot because a simulated joint that has drifted even a few millimeters produces wrong torque predictions. MuJoCo's Baumgarte stabilization (a correction term, proportional to accumulated position error, added at the velocity level every step) is the standard fix: it pulls joints back toward the constraint manifold without a hard projection step.

The practical rule: reach for a maximal-coordinate GPU simulator when the task is contact-rich and the bottleneck is sample throughput for learning; reach for minimal-coordinate Pinocchio when you need fast, exact \(M\), \(C\), \(g\) and their analytic derivatives for a model-based controller or optimizer. Many production stacks use both, Pinocchio inside the controller and MJX or Isaac for the training loop, and validate that they agree on the same model before trusting either.

Because that shared contract is exactly what separates a trustworthy speedup from a fast way to be wrong, the steps below sequence the validation work that must precede any jump to thousands of parallel environments.

Practical Recipe

1. Fix the MJCF (MuJoCo XML Format) or URDF model first: confirm mass, inertia tensors, actuator gear ratios, and joint damping against the real robot's datasheet (Franka Panda torque limits are 87 N·m at the base joint; ANYmal C leg actuators saturate near 40 N·m). A 10% mass error propagates into every one of your 4096 parallel rollouts simultaneously.
2. Choose a timestep matched to your contact stiffness. MuJoCo's default 2 ms timestep is appropriate for rigid manipulation; locomotion on compliant terrain often requires 0.5 ms to avoid contact penetration that accumulates across the batch and inflates reward.
3. Establish a CPU single-environment baseline first. Run 10,000 steps in plain MuJoCo, log joint positions, velocities, contact forces, and actuator torques, and verify energy is bounded. This is your ground-truth rollout; the GPU-batched version must reproduce it within floating-point tolerance before you scale.
4. Scale to MJX or Isaac Lab only after the single-environment baseline passes. Set num_envs=256 first, not 4096. Measure GPU utilization with nvidia-smi dmon; if SM utilization (the fraction of Streaming Multiprocessor cycles doing useful work, rather than sitting idle waiting on divergent or serialized environments) is below 70%, your episode lengths are too variable or your reset logic is serialized.
5. Record a sim-to-real gap metric before deploying. For locomotion policies trained in Isaac Lab on ANYmal or Unitree H1, the standard check is to compare foot contact timing (sim vs hardware IMU and force plate) over a 10-second trot. A gap larger than 15 ms average contact timing error predicts unstable transfer.

Production Pattern

Why GPU-parallel simulation changed robot learning sits inside the Part II robotics contract: geometry defines where things are, kinematics defines what motion is possible, dynamics defines what motion costs, control defines how errors are corrected, and sensing defines what the agent can know on time.

Experience collection as a batch computation

Scale GPU simulation only after small deterministic rollouts confirm matching state, action, reward, and reset semantics. Each of those has an intuitive role, a formal interface, a runnable check, and a reproducible failure mode.

GPU-parallel simulation changed robot learning because it made experience collection a batch computation. Instead of running one environment, waiting for its next state, and repeating, the learner steps thousands of environments with different seeds, commands, terrains, and object poses. A terrain curriculum that needs 50,000 episodes to converge on a CPU typically takes on the order of 12 rounds of wall-clock iteration on a GPU with 4096 parallel environments (50,000 divided by 4096, rounded up), though the exact ratio depends on how evenly the batch's episode lengths align. Each optimizer "episode" is actually 4096 episodes running at once, so the week-long commitment becomes an afternoon experiment. The risk is that faster experience also multiplies invalid assumptions faster. A policy that works in simulation but fails on hardware is not a policy: it is a very fast way to be wrong.

Use this recipe when turning Why GPU-parallel simulation changed robot learning into code, a simulator experiment, or a robot diagnostic. The point is not to use every library. The point is to keep the hand-built baseline and the maintained-tool path comparable. Followed in order, these five steps are exactly what let a lab claim the speedup this section opened with: the batch-rollout pattern only changes robot learning once the single-environment baseline, the scaled batch, and the sim-to-real gap have each been checked, not merely once the throughput number looks large.

1. Specify mass, inertia, actuator limits, contact model, timestep, and solver tolerance before running a rollout.
2. Run one free-motion test and one contact test with logged energy, constraint violation, and penetration depth.
3. Compare the hand calculation with MuJoCo, Drake, Pinocchio, or MJX on the same model and timestep.
4. Store solver settings, random seed, initial state, trajectory, and failure labels in one artifact.
5. Scale to Isaac Lab or GPU-parallel simulation only after a small model passes deterministic checks.

Distrust smooth simulation until the section-specific physical assumption has been stress-tested: timestep, contact stiffness, damping, friction, actuation, and energy behavior should each have a small diagnostic.
