Section 11.8: Choosing a Simulator | Building Embodied AI: From Perception to Autonomous Action

"The right simulator is the one whose wrongness you can afford, measure, and explain."
A Reality-Gap Auditor

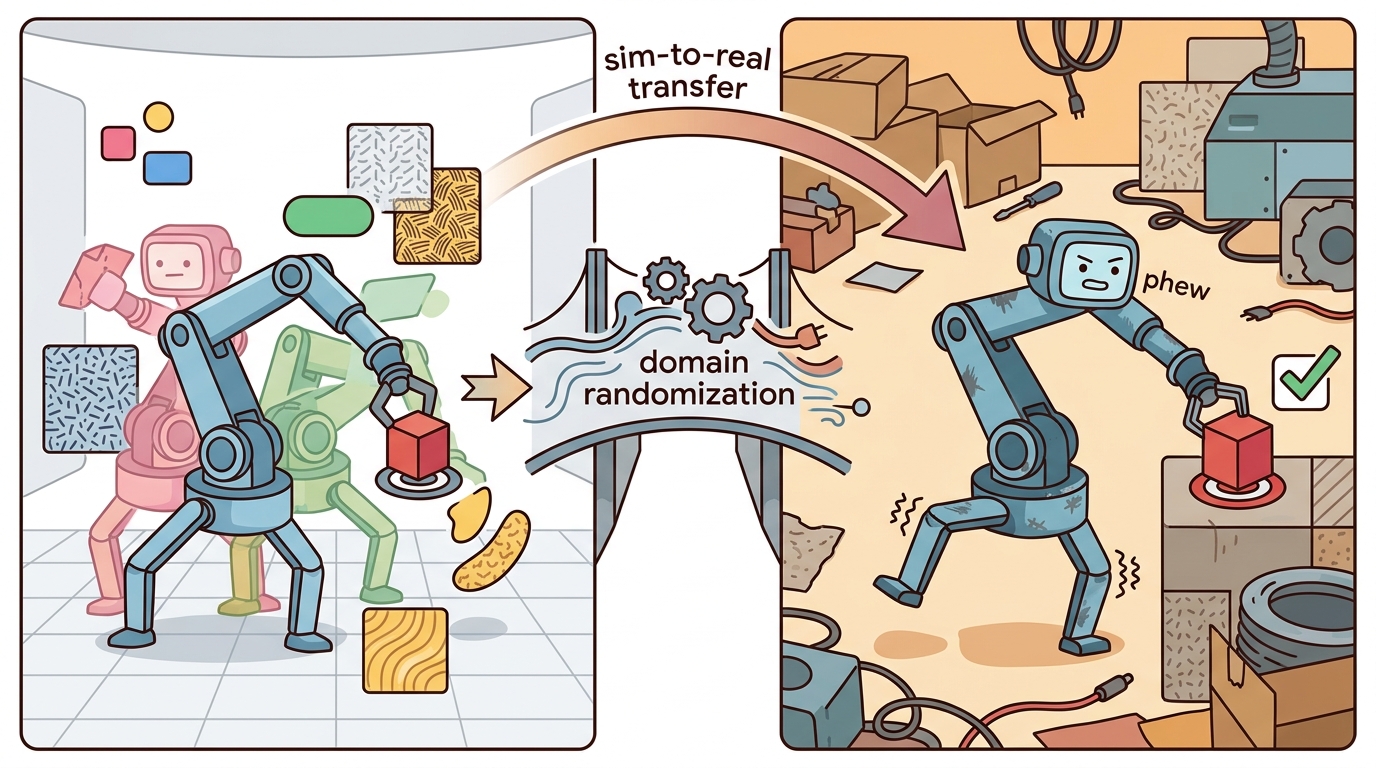

Illustration for Section 11.8: Choosing a Simulator — **Figure 11.8A**: Simulator choice is the first engineering decision in the sim-to-real pipeline, not a software preference; the wrong pick compounds across every downstream training and deployment stage.

This section assumes familiarity with the rigid-body dynamics formalisms covered in section 6.1 and the contact and constraint models explained in section 6.3. The simulator comparison criteria developed here recur in section 13.1, where tool choice directly shapes the domain randomization budget, and are extended in section 17.2, which applies the throughput and GPU-backend criteria to massively parallel reinforcement learning (RL) pipelines.

Big Picture

A team picks MuJoCo because a colleague used it. Six months later, the dexterous manipulation policy they trained refuses to transfer because the contact model was never matched to their real gripper. Simulator choice is not a software preference; it is the first engineering decision in your sim-to-real pipeline, and the wrong choice compounds across every downstream stage. The embodied AI landscape now offers half a dozen serious simulators with genuinely different physics backends, GPU strategies, and sensor models. You will leave this section with a principled scoring rubric, a recency table that names what to avoid, and a hands-on checklist you can run against your own task before committing to any tool.

Figure 11.8B: Simulator selection as a five-stage pipeline. Task risk sets the weight vector; all candidates are scored co-located in one table; the top-ranked simulator and its fallback are validated against a measured artifact; a falsification test can send the process back to re-scoring.

Simulator Choice Evidence Rule

Choose by task contract, not reputation. For the full criteria and measurement protocol, see section 11.6.

Do Not Rank Tools From Marketing Claims

Simulator claims are only meaningful when measured on your robot, your task, your controller frequency, and your observation pipeline. Treat unmatched benchmark numbers as hints, not evidence.

The cross-chapter context for this module is covered in Section 11.7. Here the focus is on applying that context to a principled selection rubric: which simulator fits your task contract, and how to verify that fit before committing.

A common assumption is that the highest-fidelity simulator is the correct choice for every stage. That assumption is wrong. No simulator simultaneously maximizes contact accuracy, GPU throughput, sensor fidelity, and middleware integration. Optimizing one criterion forces tradeoffs on the others. Simulator choice is stage-specific. A compact, high-accuracy simulator suits controller prototyping. A massively parallel GPU backend suits policy training. A ROS 2-integrated tool suits deployment testing. Treating selection as a multi-stage pipeline decision, not a one-time ranking, makes sim-to-real transfer predictable. Figure 11.8B captures this as a five-stage pipeline: task risk sets the weights, every candidate is scored in one shared table, and the top choice is validated against a measured artifact before it is committed.

The Decision Table

The table below is a starting map, not a leaderboard. Use it to choose which tools deserve a task-level comparison, then measure those tools on the same robot, task, controller frequency, observation pipeline, and validation script.

Simulator Selection Guide

Primary need	Start with	Second option	Reason
Small contact-control experiment	MuJoCo	Drake	Fast, readable, strong dynamics loop
JAX-native parallel RL	MJX	Brax or MuJoCo	JAX transformations and batched state are central
NVIDIA GPU MuJoCo-style throughput	MuJoCo Warp	Newton	Warp backend targets NVIDIA acceleration
USD (Universal Scene Description, Pixar's file format for describing 3D scenes) and sensor-rich robot learning	Isaac Lab	Newton or Genesis	Isaac Lab connects physics, rendering, sensors, and learning workflows
Emerging Warp and OpenUSD research	Newton	Isaac Lab	Useful when the frontier engine itself is part of the research question
Pythonic multi-physics and generated scenes	Genesis	Isaac Lab	Promising for multi-physics, rendering, and generative workflows
Model-based control and verification	Drake	MuJoCo	Optimization and analysis are first-class
Manipulation benchmark tasks	SAPIEN or ManiSkill	MuJoCo or Isaac Lab	Task suites and manipulation assets matter
ROS 2 system integration	Modern Gazebo	Isaac Sim	Middleware, sensors, and controllers dominate the need

Before any of these candidates earns a spot in your comparison, check that you are naming the tool by its current identity rather than a deprecated predecessor, because the decision table above is only as trustworthy as the recency of the names in it.

Recency And Deprecation Table

Use Current Tools, Not Old Names

Old or risky default	Current direction	Action
OpenAI Gym	Gymnasium	Use Gymnasium APIs for new environment work
Isaac Gym Preview, IsaacGymEnvs, OmniIsaacGymEnvs, Orbit	Isaac Lab	Migrate new robot-learning projects to Isaac Lab
Gazebo Classic	Modern Gazebo	Do not start new projects on Classic after its January 2025 end of life
Unverified vendor simulator claims	Task-level benchmark artifact	Reproduce performance and fidelity on your own task
One simulator for every stage	Multi-tool pipeline	Train, benchmark, integrate, and verify with fit-for-purpose tools

One Config, One Comparison

Compare simulators on one task configuration, one metric script, and one artifact (this "co-computed" comparison means every candidate is scored from the same run, not stitched together from separate benchmarks). A throughput number from one robot and a fidelity claim from another robot do not form a valid comparison. The comparison artifact should contain every number used in the table, so a reviewer can trace each recommendation back to the same run.

Holding every candidate to that single-artifact standard requires a concrete way to combine many criteria into one number, which is exactly what the weighted rubric below provides.

A Runnable Scoring Rubric

Think of the weighted scoring formula like packing a backpack for a specific hike. Every item (contact accuracy, throughput, sensor fidelity) has its own importance score, but that score only matters relative to today's terrain: a heavy rain jacket earns its weight on a coastal trail yet adds nothing on a desert route. Multiplying each item's usefulness by how much this particular hike demands it, then summing across everything you carry, tells you which kit is genuinely the lightest burden for the actual journey, not for the abstract idea of hiking. The criterion weights in \(\mathbf{w}\) do exactly the same work: they encode the terrain of your task so a simulator that excels where you need it most rises to the top even if it scores poorly on criteria your task never stress-tests.

Algorithm: Simulator Selection Decision Checklist

Input: task description \(\tau\), candidate simulator set \(\mathcal{S} = \{s_1, \ldots, s_n\}\), criterion weight vector \(\mathbf{w} \in \mathbb{R}^k\) with \(\sum_i w_i = 1\)

Output: ranked simulator list with primary recommendation \(s^*\) and fallback \(s^\dagger\), plus validation artifact path \(\alpha^*\)

State the dominant physical risk for \(\tau\): contact fidelity, throughput, sensor fidelity, model-based control, or middleware integration. Record it as \(\rho \in \{\text{contact}, \text{throughput}, \text{sensor}, \text{control}, \text{integration}\}\).
Set the weight vector \(\mathbf{w}\) so the component matching \(\rho\) has the highest entry. Confirm \(\sum_i w_i = 1\).
For each \(s \in \mathcal{S}\), assign integer scores \(\theta_{s,j} \in [1,5]\) on each criterion \(j\), keeping all \(n\) tools in a single table so comparisons are co-computed (the "One Config, One Comparison" callout below defines exactly what co-computed requires).
Compute the weighted score: \(\pi(s) = \sum_{j=1}^{k} w_j \cdot \theta_{s,j}\) for every candidate \(s \in \mathcal{S}\).
Rank candidates by \(\pi(s)\); select \(s^* = \arg\max_{s} \pi(s)\) and \(s^\dagger\) as the next highest.
Check maintenance currency for \(s^*\) and \(s^\dagger\): label each as current, frontier, legacy, or deprecated. Reject any deprecated choice unless no current alternative scores within \(\nabla = 0.2\) of it.
Identify or create a validation artifact \(\alpha^*\) for \(s^*\): a replay log, friction sweep, or sensor-randomization run on \(\tau\) that produced the score \(\theta_{s^*,\text{validation}}\).
Write a falsification test (a pre-committed check that a candidate must pass, so the choice can be proven wrong by a specific measurement rather than defended after the fact): specify a measurable threshold on \(\tau\) that, if missed, would demote \(s^*\) and promote \(s^\dagger\).
If \(|\pi(s^*) - \pi(s^\dagger)| < 0.15\), record both as co-primary and plan a direct head-to-head measurement on \(\tau\) before committing.
Save the full table (weights, scores, currency labels, artifact path, falsification test) as one artifact. Never use a recommendation that cannot be traced back to this artifact.

Step-Through: Weighted Scoring for a Tabletop Pushing Task

Trace the rubric with the tabletop pushing weights (contact-dominant): physics_fit 0.35, throughput 0.15, sensor_stack 0.10, integration 0.15, maturity 0.20, validation_evidence 0.05. Score two candidates and compute \(\pi(s) = \sum_j w_j \theta_{s,j}\) by hand.

MuJoCo scores (5, 3, 2, 3, 5, 5). Term by term: physics 0.35 x 5 = 1.75; throughput 0.15 x 3 = 0.45; sensor 0.10 x 2 = 0.20; integration 0.15 x 3 = 0.45; maturity 0.20 x 5 = 1.00; validation 0.05 x 5 = 0.25. Sum = 1.75 + 0.45 + 0.20 + 0.45 + 1.00 + 0.25 = 4.10.

Isaac Lab scores (4, 5, 5, 4, 4, 4). Term by term: physics 0.35 x 4 = 1.40; throughput 0.15 x 5 = 0.75; sensor 0.10 x 5 = 0.50; integration 0.15 x 4 = 0.60; maturity 0.20 x 4 = 0.80; validation 0.05 x 4 = 0.20. Sum = 1.40 + 0.75 + 0.50 + 0.60 + 0.80 + 0.20 = 4.25.

Here Isaac Lab edges ahead at 4.25 versus 4.10 because its broad sensor and throughput strengths survive the contact-heavy weighting. Now flip the dominant risk: raise physics_fit to 0.50 and drop throughput and sensor_stack to 0.05 each. MuJoCo climbs to 0.50 x 5 + 0.05 x 3 + 0.05 x 2 + 0.15 x 3 + 0.20 x 5 + 0.05 x 5 = 2.50 + 0.15 + 0.10 + 0.45 + 1.00 + 0.25 = 4.45, while Isaac Lab falls to 2.00 + 0.25 + 0.25 + 0.60 + 0.80 + 0.20 = 4.10. The winner flips with one weight change: that single number, not the tool's reputation, decided the outcome.

Code Fragment 1 turns simulator choice into a co-computed, one-artifact decision, which means all tools are scored on the same criteria in one run. This prevents invalid number-by-number comparisons across configurations. The scale cost can be substantial: teams that have reported choosing a simulator on unmatched vendor benchmarks typically discover the contact-model mismatch only after training, forcing a retrain that can cost on the order of weeks of GPU time, whereas a short contact-sweep comparison run first can catch the same mismatch in under an hour. The cost compounds at the rollout level too: verifying contact calibration before training may need only on the order of hundreds of targeted friction-sweep episodes, whereas finding the same mismatch after training can force a rerun of tens of thousands of policy episodes.

# Score simulators on one task using one rubric and one config.
# Higher is better, but the weights must match the task.
# This avoids mixing metrics from different experiments.
weights = {
    "physics_fit": 0.30,
    "throughput": 0.20,
    "sensor_stack": 0.15,
    "integration": 0.15,
    "maturity": 0.15,
    "validation_evidence": 0.05,
}

scores = {
    "MuJoCo": {
        "physics_fit": 5,
        "throughput": 3,
        "sensor_stack": 2,
        "integration": 3,
        "maturity": 5,
        "validation_evidence": 5,
    },
    "Isaac Lab": {
        "physics_fit": 4,
        "throughput": 5,
        "sensor_stack": 5,
        "integration": 4,
        "maturity": 4,
        "validation_evidence": 4,
    },
    "Drake": {
        "physics_fit": 4,
        "throughput": 2,
        "sensor_stack": 2,
        "integration": 3,
        "maturity": 5,
        "validation_evidence": 5,
    },
    "Modern Gazebo": {
        "physics_fit": 3,
        "throughput": 2,
        "sensor_stack": 4,
        "integration": 5,
        "maturity": 4,
        "validation_evidence": 4,
    },
}

ranked = sorted(
    ((name, sum(weights[k] * vals[k] for k in weights)) for name, vals in scores.items()),
    key=lambda item: item[1],
    reverse=True,
)

for name, score in ranked:
    print(f"{name}: {score:.2f}")

Isaac Lab: 4.35
MuJoCo: 3.85
Modern Gazebo: 3.45
Drake: 3.35

Code Fragment 1: This rubric ranks candidate simulators with one weight vector, one scoring table, and an explicit validation-evidence column. Change the weights for a control-heavy task and Drake may rise, change them for ROS 2 integration and Gazebo may rise.

Why the Validation Artifact Earns Its Place

A policy that works in simulation but collapses on hardware is not a policy: it is a calibration debt you pay in GPU hours and broken hardware.

A validation artifact matters because simulator contact and friction parameters are not ground truth; they are calibration choices. A policy trained on uncalibrated parameters typically shows a systematic gap once it meets a physical surface: a gripper that never slips in simulation can slip on the real finger pad the first time contact forces exceed what the simulator modeled. The control loop then has no learned recovery, because training never made that failure mode visible. The artifact makes the calibration visible and reversible before you spend any GPU budget at scale.

To build an artifact, run the candidate simulator on one geometric scenario from the real task, log the rollout, and compare a measurable outcome against the physical reference. For contact fidelity, use a friction sweep: load the gripper mesh at three normal-force levels, record slip distance at each, and check it against calipers or a force-plate reading from the real gripper. Save the resulting CSV, log, or JSON beside the scoring table, so every number in the rubric traces to one measured run.

Checkpoint

So far: a validation artifact matters because contact and friction parameters are calibration choices rather than ground truth, a mismatch stays invisible until hardware if it is not measured, and the fix is to build the artifact as one concrete friction-sweep run compared against a physical reference before spending GPU budget at scale.

Library Shortcut

The scoring script is about 50 lines of decision support, but the bottleneck is rarely the code. The bottleneck is collecting grounded scores: for contact fidelity, run a friction sweep on the actual gripper geometry (Franka Panda fingertip radius 8 mm, nominal friction 0.7) and record slip distance under three load levels. For throughput, run 512 parallel rollouts and measure wall-clock steps per second on the target GPU. For sensor fidelity, compare depth noise on a wrist-mounted RealSense D435 against the simulator's point-cloud model. Tools such as Hydra, Weights and Biases, or plain JSON plus CSV can store the comparison artifact, but measured values from your specific robot replace opinion scores and give the rubric its predictive power for sim-to-real transfer.

Hands-On Lab: Benchmark A Simulator Choice

Duration: about 75 minutesDifficulty: Intermediate

Objective

Build a reproducible simulator-selection artifact for a reaching, pushing, locomotion, or ROS 2 integration task.

What You'll Practice

Writing a task-specific simulator rubric
Co-computing comparable scores in one pass
Adding a deprecation and maintenance check
Recording validation evidence instead of preference scores
Producing an engineering recommendation with a fallback

Setup

The required version uses only Python's standard library. Optional extensions can call MuJoCo, Isaac Lab, ManiSkill, or Gazebo after those tools are installed.

Steps

Work through the steps in order so the final recommendation has a visible chain from task risk to weights, scores, maintenance status, validation evidence, and falsification test.

Step 1: Define The Task

Choose one task and write the dominant risk: contact fidelity, throughput, visual sensors, model-based control, manipulation benchmark coverage, or ROS 2 integration.

task = "tabletop pushing"
dominant_risk = "contact fidelity"
requirements = {"contact fidelity", "asset import", "batch rollout", "camera rendering"}
score = {"MuJoCo": 3, "Isaac Lab": 4, "Genesis": 3}
choice = max(score, key=score.get)
print({"task": task, "dominant_risk": dominant_risk, "recommended_stack": choice})

Code Fragment 2: This lab starter names the task and the dominant risk before any simulator is chosen. The two variables, task and dominant_risk, force the recommendation to start from the embodied problem.

Hint

If the task fails when objects slip incorrectly, choose contact fidelity. If it fails because training is too slow, choose throughput.

Step 2: Set Weights

Choose weights that match the task. The weights should sum to 1.0 so the final score is interpretable, and one criterion should capture whether the evidence was actually measured on this task.

Code Fragment 3: This starter defines the rubric weights for simulator selection. The named keys make the tradeoff visible: physics, throughput, sensors, integration, maturity, and validation evidence cannot all dominate at once.

Hint

A manipulation benchmark usually weights physics and maturity heavily. A synthetic-data task gives more weight to sensors and rendering.

Step 3: Score Candidates

Score at least three simulators from 1 to 5 using the same criteria. Keep the candidates in one table so the comparison is co-computed.

scores = {
    "MuJoCo": {
        "physics_fit": 5,
        "throughput": 3,
        "sensor_stack": 2,
        "integration": 3,
        "maturity": 5,
        "validation_evidence": 5,
    },
    "Isaac Lab": {
        "physics_fit": 4,
        "throughput": 5,
        "sensor_stack": 5,
        "integration": 4,
        "maturity": 4,
        "validation_evidence": 4,
    },
    "Modern Gazebo": {
        "physics_fit": 3,
        "throughput": 2,
        "sensor_stack": 4,
        "integration": 5,
        "maturity": 4,
        "validation_evidence": 4,
    },
}

if isinstance(scores, list):
    print({"rows": len(scores), "first": scores[0] if scores else None})
elif isinstance(scores, dict):
    print({"fields": sorted(scores), "audit_ready": all(value not in (None, "") for value in scores.values())})
else:
    print({"value": scores})

Code Fragment 4: This starter stores all candidate simulator scores in one table. Keeping identical criteria for MuJoCo, Isaac Lab, and Modern Gazebo prevents invalid comparisons across different rubrics.

Hint

Do not score a tool highly because it is popular. Score it highly because it fits the written task.

Step 4: Rank And Explain

Compute a ranking and print the recommendation with the exact reason.

ranked = sorted(
    ((name, sum(weights[k] * vals[k] for k in weights)) for name, vals in scores.items()),
    key=lambda item: item[1],
    reverse=True,
)
print(ranked[0])

('MuJoCo', 4.1)

Code Fragment 5: This starter computes a weighted ranking from the shared rubric. The ranked list gives both the winner and the fallback candidates for the written recommendation.

Hint

If two tools are close, the fallback recommendation is as important as the winner.

Step 5: Add A Currency Check

Add one maintenance note for each candidate: current, frontier, legacy, or deprecated. Then add one validation note that states which evidence artifact supports the score.

currency = {
    "MuJoCo": "current",
    "Isaac Lab": "current",
    "Modern Gazebo": "current",
}
validation_artifacts = {
    "MuJoCo": "friction sweep replay",
    "Isaac Lab": "camera randomization replay",
    "Modern Gazebo": "ROS 2 topic and controller log",
}
def audit_release_support(
    currency: dict[str, str], validation_artifacts: dict[str, str]
) -> tuple[dict[str, str], dict[str, str]]:
    assert currency.keys() == validation_artifacts.keys()
    return currency, validation_artifacts

currency, validation_artifacts = audit_release_support(currency, validation_artifacts)
def audit_release_support(
    currency: dict[str, str], validation_artifacts: dict[str, str]
) -> tuple[dict[str, str], dict[str, str]]:
    assert currency.keys() == validation_artifacts.keys()
    return currency, validation_artifacts

currency, validation_artifacts = audit_release_support(currency, validation_artifacts)
print(currency)
print(validation_artifacts)

{'MuJoCo': 'current', 'Isaac Lab': 'current', 'Modern Gazebo': 'current'}
{'MuJoCo': 'friction sweep replay', 'Isaac Lab': 'camera randomization replay', 'Modern Gazebo': 'ROS 2 topic and controller log'}

Code Fragment 6: This starter adds maintenance status and validation artifacts to the simulator decision. The currency table keeps recency risk visible, while validation_artifacts prevents the score from becoming unsupported opinion.

Hint

Gazebo Classic should be marked legacy or deprecated, while modern Gazebo should be marked current.

Expected Output

The finished lab should output a ranked list, a primary recommendation, a fallback, a currency note, and a validation artifact for each candidate. The written paragraph should explain why the tool fits the task and what experiment would change the decision.

Stretch Goals

Run the rubric twice: once for training and once for deployment testing.
Add cost, operating system, and GPU memory columns.
Replace manual scores with measured throughput from two installed simulators.

Each stretch goal should produce a new comparison artifact, not only a changed recommendation sentence.

Complete Solution

The solution below keeps the task, rubric, evidence note, and falsification test in one reproducible artifact.

# Complete simulator selection rubric for a tabletop pushing task.
# The scores are co-computed with one config so comparisons are valid.
# Replace scores with measured data when tools are installed locally.
task = "tabletop pushing"
dominant_risk = "contact fidelity"
weights = {
    "physics_fit": 0.35,
    "throughput": 0.15,
    "sensor_stack": 0.10,
    "integration": 0.15,
    "maturity": 0.20,
    "validation_evidence": 0.05,
}
scores = {
    "MuJoCo": {
        "physics_fit": 5,
        "throughput": 3,
        "sensor_stack": 2,
        "integration": 3,
        "maturity": 5,
        "validation_evidence": 5,
    },
    "Isaac Lab": {
        "physics_fit": 4,
        "throughput": 5,
        "sensor_stack": 5,
        "integration": 4,
        "maturity": 4,
        "validation_evidence": 4,
    },
    "Modern Gazebo": {
        "physics_fit": 3,
        "throughput": 2,
        "sensor_stack": 4,
        "integration": 5,
        "maturity": 4,
        "validation_evidence": 4,
    },
}
currency = {
    "MuJoCo": "current",
    "Isaac Lab": "current",
    "Modern Gazebo": "current",
}
validation_artifacts = {
    "MuJoCo": "friction sweep replay",
    "Isaac Lab": "camera randomization replay",
    "Modern Gazebo": "ROS 2 topic and controller log",
}
ranked = sorted(
    ((name, sum(weights[k] * vals[k] for k in weights)) for name, vals in scores.items()),
    key=lambda item: item[1],
    reverse=True,
)
winner, winner_score = ranked[0]
fallback, fallback_score = ranked[1]
print(f"task: {task}")
print(f"dominant risk: {dominant_risk}")
print(f"recommendation: {winner} ({winner_score:.2f}, {currency[winner]})")
print(f"fallback: {fallback} ({fallback_score:.2f}, {currency[fallback]})")
print(f"evidence: {validation_artifacts[winner]}")
print("falsification test: compare pushing distance under three friction settings")

task: tabletop pushing
dominant risk: contact fidelity
recommendation: MuJoCo (4.10, current)
fallback: Isaac Lab (4.00, current)
evidence: friction sweep replay
falsification test: compare pushing distance under three friction settings

Code Fragment 7: This complete solution prints the selected simulator, fallback, currency labels, validation artifact, and falsification test. The output shows why the recommendation is an experiment plan rather than a popularity ranking.

Practical Example

For a pick-and-place project, MuJoCo might win the early controller prototype, ManiSkill might win benchmark comparison, and Isaac Lab might win large-scale policy training with cameras. The correct recommendation can be a pipeline, not a single tool.

Real-World Application: OpenAI's Dactyl Rubik's Cube Hand

OpenAI's Dactyl system trained a Shadow Hand to solve a Rubik's Cube using MuJoCo, chosen precisely because the dominant risk was contact fidelity across many fingertip-object contacts. The team deliberately paired the contact-accurate simulator with aggressive automatic domain randomization to close the remaining sim-to-real gap, exactly the stage-specific tool match this rubric formalizes. Choosing a high-throughput GPU backend first would have optimized the wrong criterion for a dexterous-contact task. In terms of Figure 11.8B, this is stage 1 (identify task risk = contact) driving stage 2 (weights dominated by physics_fit) all the way to a stage-5 recommendation of MuJoCo, exactly the pipeline this section asks you to run on your own task.

Memory Hook

A good embodied system makes choosing a simulator visible twice: once in the design sketch and once in the replay artifact. The second view keeps the first one honest.

Self Check

Can you name the simulator you would use for training, the simulator or stack you would use for integration testing, and the mature baseline you would cite? If not, your tool plan is incomplete.

Exercise 11.8

Repeat the lab for legged locomotion and increase the throughput weight. Then repeat it for ROS 2 deployment testing and increase the integration weight. Explain why the winner changes.

Research Frontier

Three active directions are reshaping how researchers choose and combine simulators.

Differentiable and GPU-native physics for policy gradient methods. Simulators that expose analytic gradients through contact allow direct back-propagation from reward to policy parameters, bypassing sample-inefficient Monte Carlo rollouts. Genesis (Xian et al., 2025, "Genesis: A Generative World for General-Purpose Robotics and Embodied AI Learning", arXiv 2501.04722) demonstrates a fully differentiable multi-physics engine running at millions of steps per second on a single GPU, with gradients usable for trajectory optimization and policy learning in the same pass.

Foundation-model-guided automatic domain randomization. Rather than hand-tuning friction, mass, and texture ranges, recent work lets vision-language models propose randomization distributions grounded in real-world image statistics. The RialTo system (Torne et al., 2024, "Reconciling Reality through Simulation: A Real-to-Sim-to-Real Approach for Robust Manipulation", RSS 2024), built by MIT CSAIL on Isaac Sim, reconstructs a real scene as a USD "digital twin" (a simulated replica built to match one specific physical scene's geometry and layout, not a generic asset), randomizes friction and mass around the scanned object, and trains an RL policy that transfers back to a Franka arm with far fewer real demonstrations than imitation learning alone. The takeaway for simulator choice: the randomization budget you set in section 13.1 is itself becoming a learned, scene-grounded quantity rather than a hand-tuned slider.

Cross-simulator validation pipelines and simulator interchange formats. Researchers at the Isaac Lab team and collaborators (Mittal et al., 2024, "Isaac Lab: A Unified and Modular Platform for Robot Learning", arXiv 2301.04195 updated 2024) are converging on USD-based scene description as a common interchange, enabling a policy trained in one backend to be validated in a second simulator before hardware deployment. This direction treats simulator agreement, not single-simulator accuracy, as the fidelity criterion.

Open problem for a PhD student: There is no accepted protocol for measuring when two simulators are "close enough" that a policy trained in one transfers reliably to the other. Developing a falsifiable divergence metric, one that can be computed before a real-robot rollout and that predicts transfer success rate, would fill a concrete gap in the sim-to-real literature.

Key Takeaway

Simulator choice is an experimental design decision. Match the tool to the dominant risk, compare candidates in one co-computed artifact, and document what would change your mind.

Project Ideas

Beginner (weekend): Simulator scoring dashboard. Build a Python script that reads a YAML file of rubric weights and simulator scores, runs the weighted ranking from this section, and prints a ranked recommendation table with maintenance currency labels. The key challenge is designing the YAML schema so any teammate can add a new simulator row without touching the ranking code, using only Gymnasium and the standard library.

Intermediate (1-2 weeks): Contact-fidelity comparison across two simulators. Set up the same tabletop pushing task in both MuJoCo and PyBullet, run a friction sweep at three normal-force levels in each, log slip distance per trial to CSV, and plot the results alongside a physical reference measurement. The key challenge is keeping the robot model, object geometry, and control loop identical across both simulators so the friction parameter is the only variable, not the task setup.

Intermediate (1-2 weeks): Multi-stage sim-to-real pipeline scaffold. Use MuJoCo for controller prototyping, Isaac Lab for parallel policy training with a Gymnasium-compatible wrapper, and Modern Gazebo with ROS2 for integration testing, connecting all three stages with a shared LeRobot-format replay log. The key challenge is defining a single observation and action schema that each stage can consume without format conversion, so the validation artifact from one stage can be replayed in the next.

What's Next?

Continue to Chapter 12, where simulator choice becomes benchmark choice: what exactly are we measuring, and how do we avoid fooling ourselves?

Bibliography and Further Reading

Tools & Libraries

Google DeepMind. "MuJoCo Documentation."

MuJoCo is the main mature baseline for compact rigid-body robot-learning experiments. Use the docs to verify current APIs, MJX, and MuJoCo Warp options before running comparisons.

Tool

Isaac Lab Project. "Isaac Lab Documentation."

Isaac Lab is the current NVIDIA robot-learning framework and a common default for GPU RL and sensor-rich simulation. It is central for readers scaling experiments into thousands of environments.

Tool

NVIDIA. "Newton Physics Engine."

Newton represents the emerging Warp and OpenUSD direction for open robot-learning physics. Readers should treat it as a frontier option and validate it against mature baselines.

Tool

Open Robotics. "Installing Gazebo With ROS."

This page documents supported ROS and Gazebo combinations. It is especially relevant for system-integration choices because version compatibility can decide whether a simulator plan is practical.

Tool

ManiSkill Team. "ManiSkill Documentation."

ManiSkill is the practical bridge from simulator choice to manipulation benchmarks. It helps readers connect SAPIEN-powered simulation to the task-suite discussion in the next chapter.

Tool

What's Next?

Continue to Chapter 12: Benchmarks and Task Suites, where this contract becomes the input to the next embodied capability.
