"Once you have a codebook, a manipulation sequence becomes a sentence. The robot learns to speak before it learns to grasp."
A Discrete Policy Architect
This section assumes familiarity with continuous action-chunk prediction from section 22.2 and the VQ-VAE codebook idea introduced alongside diffusion policies in section 22.4. The comparison between discrete tokens and continuous outputs is resolved directly in section 22.7, which provides a decision framework for choosing an action representation. The discrete-token idea recurs in Part VII alongside robot foundation models and cross-embodiment generalization in section 35.2, where large transformers treat motion tokens as a shared vocabulary across robot bodies.
A robot sorting groceries executes a handful of recognizable moves: reach, close, lift, place. Yet diffusion policies treat every 50 Hz joint-velocity sample as a fresh high-dimensional puzzle. VQ-BeT breaks that mold: it learns a compact codebook of motion tokens so the transformer predicts one integer per chunk instead of fourteen floats. That one shift is why robot transformers can now share a motion vocabulary across entirely different bodies. This section builds and stress-tests that codebook, identifies where token granularity fails on delicate contact tasks, and closes with a clear rule for when to go discrete versus continuous.

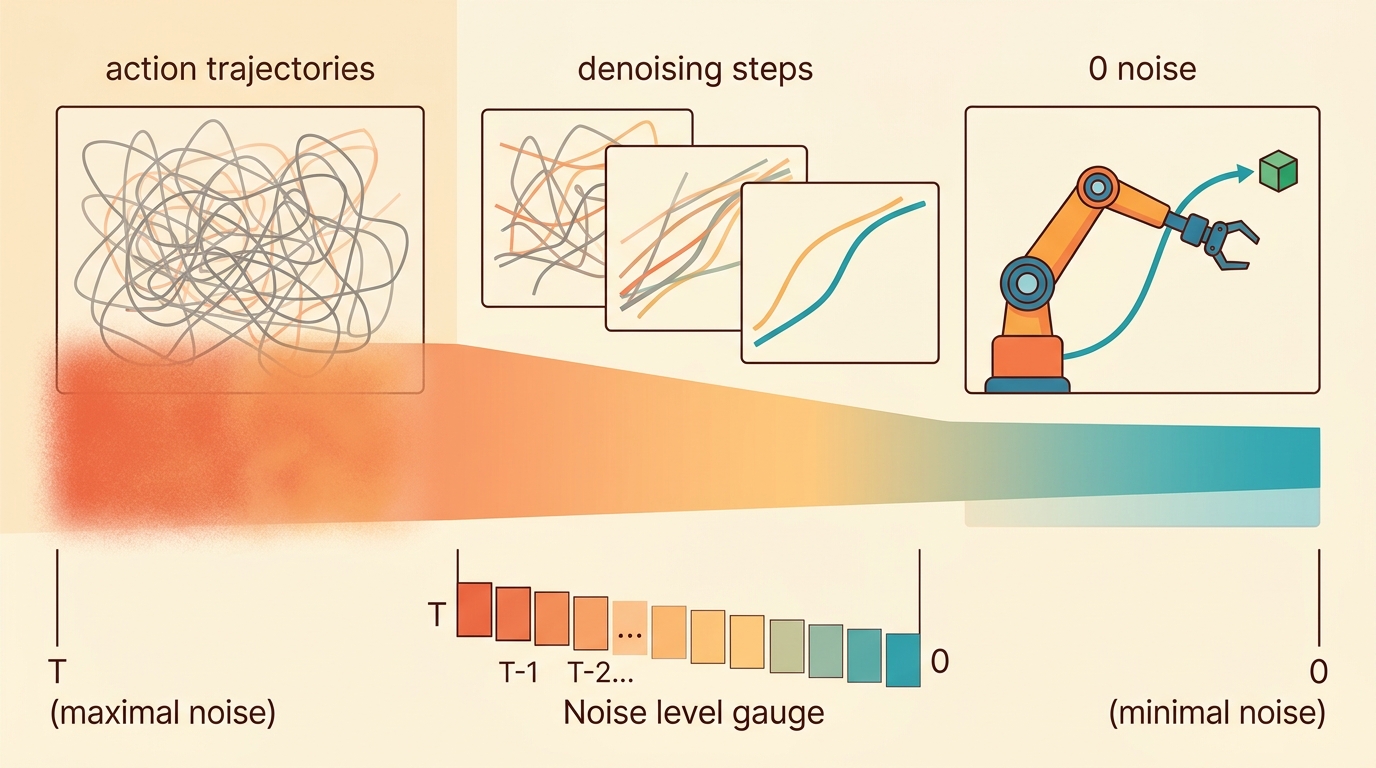

A diffusion policy wakes up 100 times to denoise a single arm motion; VQ-BeT wakes up once, names the motion with one integer, and goes back to sleep, and that single change is what lets robot transformers share a motion vocabulary across bodies they were never trained on. The catch, covered below, is that a one-integer name cannot whisper the sub-millimeter correction a peg insertion demands.
The key question in VQ-BeT is practical. When a Franka Panda or ALOHA arm executes a decoded 10-step chunk at 50 Hz, how much positional error does the nearest-codebook rounding inject? And does that error stay under the contact-precision budget, roughly 2 mm for peg insertion, for the task at hand? On LIBERO-Spatial pick-and-place the rounding is invisible and VQ-BeT beats Diffusion Policy 87% to 82%; on a tight-tolerance insertion the same 2,048-code book leaks up to 3 mm and the ranking flips. The answer is never a property of the method alone, only of the method paired with a robot body, a task tolerance, and a measured reconstruction error.
A representation earns its place when it changes the measurable action interface. In vq-bet and discretized behavior modeling, the reader should keep asking which decision becomes easier, safer, or more reliable.
Theory
Why discretize at all? Continuous action spaces like 7-DOF joint velocities sampled at 50 Hz create a high-dimensional prediction target. There, diffusion models must denoise across every dimension at once. When demonstrations cluster into a small set of reusable motion primitives (reach, grasp close, transfer, release), a codebook, a finite lookup table of representative motion vectors, compresses that space dramatically: instead of predicting 14 floats per step, the transformer predicts one integer token per chunk. Lee et al. (2024) introduced VQ-BeT, short for Vector-Quantized Behavior Transformer, to exploit this structure using a VQ-VAE (Vector Quantized Variational Autoencoder, where the encoder's continuous output is snapped to the nearest entry in a learned codebook before decoding). Their 2048-entry codebook, trained on the LIBERO benchmark (a standard simulated suite of tabletop manipulation tasks used to compare robot learning methods), captured the modal diversity of bimanual manipulation without the iterative sampling cost of diffusion.
Checkpoint
So far: continuous action spaces are high-dimensional and costly to denoise; VQ-BeT sidesteps that cost by snapping each action chunk to the nearest entry in a learned codebook and letting the transformer predict a single token index instead.
The tradeoff is precision: a token can only resolve motion to the granularity of the nearest codebook entry, which matters most for delicate contact tasks. A codebook that cannot name the motion cannot teach it. A vocabulary of a thousand words can tell a rich story, but it cannot whisper. That compression is why a transformer trained on token sequences can generalize across robot bodies with a few hundred demonstrations, whereas the same transformer predicting raw joint velocities typically needs tens of thousands of episodes to cover the same behavioral diversity. Figure 22.6B traces the full round trip: a continuous action chunk is encoded to its nearest codebook entry, the transformer predicts that single token index, and the VQ-VAE decoder expands the token back into a continuous chunk for execution.
A common assumption is that VQ-BeT's single integer token means the robot operates in a truly discrete action space with no precision loss relative to the original demonstrations. That assumption typically breaks down whenever physical contact matters. The VQ-VAE decoder outputs a continuous action chunk from the nearest codebook vector, so quantization error is present by construction; in practice its size varies with how close the true motion lands to an existing code, ranging from negligible to well above the contact budget, as the worked example below shows, and it accumulates whenever the true motion falls between codebook entries. Discretization trades reconstruction fidelity for inference speed and cross-embodiment transferability. Token prediction is fast and composable, but each decoded chunk carries a spatial error floor set by codebook granularity. That error floor explains why precision tasks such as peg insertion can regress even when coarse pick-and-place scores improve.
Think of a paint-by-number palette with only 2,048 colors. A skilled painter mixing pigments can hit any hue they want, but a paint-by-number artist must pick the closest swatch on the palette, leaving every subtly different shade rounded to the nearest available chip. For broad regions of sky or grass the rounding is invisible, but for a narrow sliver of shadow between two objects the nearest swatch may be noticeably wrong. VQ-BeT's codebook works the same way: coarse reaching and grasping motions land comfortably on a nearby entry, while the precise fingertip adjustments needed for peg insertion fall between swatches and incur an unavoidable gap.
The practical design rule is to make the interface inspectable before optimization begins: inputs, outputs, units, latency, bounds, and failure labels should all be visible in the saved artifact.
The mechanism in VQ-BeT and discretized behavior modeling is the contract between representation and action. Name what enters the module, what leaves it, which assumptions make that transformation valid, and which log would reveal a bad handoff.
Worked Example
Keep one concrete rollout in view. A sensor reading becomes an estimate, the estimate constrains an action, the action changes the world, and the next observation confirms or contradicts the assumption. The section's idea is useful only if it improves that loop.
from pathlib import Path
dataset_root = Path("robot_demos")
for episode in sorted(dataset_root.glob("episode_*")):
print("inspect", episode.name)
print("next step: convert demonstrations to the LeRobotDataset format")robot_demos/ and prints the target format (LeRobotDataset) that the raw demonstrations must be converted into before VQ-VAE codebook training can begin.Expected output: the printed trace for VQ-BeT and discretized behavior modeling should expose the method configuration, the measured evidence field, and the failure label. If one of those fields is missing or unchanged under the perturbation, the example is not yet an evaluation artifact.
The from-scratch fragment should expose the assumption behind discrete behavior tokens with codebook coverage, action reconstruction error, and closed-loop correction. For serious runs, use LeRobot, robomimic, ACT, Diffusion Policy, VQ-BeT, ALOHA, GELLO, or UMI with the same manifest and evaluator.
VQ-BeT And Discrete Action Tokens
With the data interface surfaced, the next step formalizes the compression step that those libraries implement under the hood.
VQ-BeT discretizes continuous behavior into a codebook of action tokens, then models behavior as token prediction conditioned on observations. The central compression step assigns each continuous action chunk \(A\) to the nearest code \(e_j\):
$$j^* = \arg\min_j \|A - e_j\|_2^2.$$
This helps when demonstrations contain repeated motion primitives: reach variants, grasp closures, handovers, and recovery moves. Discretization typically makes multimodal behavior easier to model because the transformer's cross-entropy loss over token indices treats each demonstrated mode as its own class, rather than forcing a continuous regressor to average across modes and produce a blurred, physically invalid action in between them. The codebook becomes a bottleneck, however, if it is too small or trained on biased data.
Algorithm: VQ-BeT Training Pipeline (Codebook + Transformer)
Input: demonstration dataset \(\mathcal{D} = \{(o_t, A_t)\}\) of observation-action pairs, codebook size \(K\), chunk length \(H\), transformer policy \(\pi_\theta\)
Output: trained VQ-VAE encoder \(E_\phi\), codebook \(\{e_j\}_{j=1}^K\), decoder \(D_\psi\), and transformer head \(\pi_\theta\)
- Segment each demonstration into overlapping action chunks \(A_t = [a_t, \ldots, a_{t+H-1}] \in \mathbb{R}^{H \times d}\) and pair each chunk with observation \(o_t\).
- Train the VQ-VAE: encode each chunk to a latent \(z = E_\phi(A_t)\), then find the nearest codebook entry \(j^* = \arg\min_j \|z - e_j\|_2^2\), and update \(E_\phi\), \(D_\psi\), and \(\{e_j\}\) via the VQ loss \(\mathcal{L}_{VQ} = \|A_t - D_\psi(e_{j^*})\|_2^2 + \beta \|sg[z] - e_{j^*}\|_2^2\), where \(sg[\cdot]\) is the stop-gradient operator (it passes its input through unchanged in the forward pass but blocks gradient flow in the backward pass, so this term updates only the codebook and not the encoder).
- Audit codebook utilization: compute token assignment entropy \(H = -\sum_{j=1}^K p_j \log p_j\) over \(\mathcal{D}\); if fewer than 40% of codes are assigned at least once, reduce \(K\) and retrain.
- Freeze the VQ-VAE. For each \((o_t, A_t)\) in \(\mathcal{D}\), extract the discrete label \(y_t = j^*(A_t)\) and store the pair \((o_t, y_t)\).
- Train the transformer policy \(\pi_\theta\) by minimizing the cross-entropy loss \(\mathcal{L}_{CE} = -\sum_t \log \pi_\theta(y_t \mid o_t)\) using gradient descent with learning rate \(\alpha\): \(\theta \leftarrow \theta - \alpha \nabla_\theta \mathcal{L}_{CE}\).
- At inference, pass observation \(o_t\) through \(\pi_\theta\) to predict token \(\hat{j} = \arg\max_j \pi_\theta(j \mid o_t)\).
- Decode the predicted token back to a continuous action chunk: \(\hat{A}_t = D_\psi(e_{\hat{j}})\).
- Execute \(\hat{A}_t\) on the robot in a receding-horizon loop (execute only the next few predicted steps, then re-observe and re-predict, rather than running the full chunk open-loop); after \(H\) steps collect new \(o_{t+H}\) and repeat from step 6.
- Log per-token action reconstruction error \(\|A_t - D_\psi(e_{j^*})\|_2\) per task; if error exceeds the contact-precision threshold (typically 2 mm), switch to a continuous-output policy for that subtask.
Action tokens are useful only if each token preserves a controllable behavior primitive. If the codebook mixes incompatible contacts, the downstream transformer inherits the confusion.
Consider a specific case: VQ-BeT on the LIBERO-Spatial suite trains a residual transformer (a transformer head that predicts a correction on top of a simpler base predictor, rather than the raw token from scratch) on top of a 2048-code VQ-VAE. Each 10-step action chunk (10 x 7 joint velocities = 70 floats) is compressed to a single token index. At inference the transformer predicts a token in one forward pass, then the VQ-VAE decoder expands it back to 70 floats; this is one integer standing in for seventy floats, and the payoff is real: total inference latency on a single GPU is under 5 ms per chunk, compared to roughly 100 ms for 100-step Denoising Diffusion Probabilistic Model (DDPM) denoising. On the Pick-and-Place tasks in LIBERO-Spatial, VQ-BeT achieves 87% success versus 82% for Diffusion Policy (as of 2024, Lee et al.), but on tasks requiring precise peg insertion the gap reverses: codebook quantization introduces up to 3 mm of positional error that diffusion's continuous output avoids.
Before training the transformer head in VQ-BeT, audit codebook utilization with vq_bet.vqvae.get_codebook_usage() or by logging the entropy of token assignments across your demonstration set: if fewer than 40% of the num_codes entries are assigned at least once, the codebook is oversized for your data and the transformer wastes capacity modeling dead codes. For contact-rich tasks such as peg insertion, lower num_codes (try 512 or 256) and check that per-token action reconstruction error stays below 2 mm before freezing the VQ-VAE and starting transformer training. Skipping this audit is the single most common cause of unexplained performance drops when porting VQ-BeT from LIBERO to a new manipulation suite.
Dead codes matter physically: the transformer can put probability mass on an index that decodes to an uninitialized mean vector, yielding a near-zero or jerk velocity chunk that trips a fault stop on torque-limited hardware. The utilization check catches this before deployment. Run every demonstration chunk through the frozen encoder, record the winning code, and count how many of the \(K\) entries fire at least once. Token assignment entropy \(H = -\sum_j p_j \log p_j\) compresses that coverage into one number: low entropy means a few dominant codes and many dead ones. Shrinking \(K\) until entropy climbs forces each surviving code to own a compact, physically meaningful motion region.
Code Fragment 22.6.2 assigns two action chunks to their nearest codebook entries.
# Assign continuous action chunks to nearest discrete motion codes.
# This mirrors the vector-quantization step in discretized behavior models.
import numpy as np
codebook = np.array([[0.0, 0.1], [0.5, 0.5], [-0.4, 0.2]])
chunks = np.array([[0.45, 0.55], [-0.35, 0.25]])
distances = ((chunks[:, None, :] - codebook[None, :, :]) ** 2).sum(axis=-1)
tokens = distances.argmin(axis=1)
print("nearest tokens:", tokens.tolist())argmin, producing the token sequence [1, 2].Step-Through: nearest-code assignment and the quantization error it injects
Trace the encode-quantize-decode round trip with one tiny chunk. Take a 3-entry codebook holding 2D motion vectors: \(e_0 = (0.0, 0.1)\), \(e_1 = (0.5, 0.5)\), \(e_2 = (-0.4, 0.2)\). The true demonstrated chunk is \(A = (0.42, 0.40)\).
Step 1, distances. Squared distance to each code: to \(e_0\) it is \((0.42-0.0)^2 + (0.40-0.1)^2 = 0.1764 + 0.09 = 0.2664\); to \(e_1\) it is \((0.42-0.5)^2 + (0.40-0.5)^2 = 0.0064 + 0.01 = 0.0164\); to \(e_2\) it is \((0.42+0.4)^2 + (0.40-0.2)^2 = 0.6724 + 0.04 = 0.7124\).
Step 2, argmin. The smallest is \(0.0164\), so the token index is \(j^* = 1\). The transformer now only has to predict the integer 1.
Step 3, decode. The decoder emits the codebook vector \(e_1 = (0.5, 0.5)\), not the original \((0.42, 0.40)\).
Step 4, quantization error. The injected error is \(\|A - e_1\|_2 = \sqrt{0.0164} \approx 0.128\) units. If those units are meters this is a 128 mm round-off, far above the 2 mm contact budget; if the chunk were instead \((0.49, 0.51)\) the same token would round to only \(\sqrt{0.0002} \approx 14\) mm. Same codebook, same token, very different error floor depending on how close the true motion lands to a code. That distance-to-nearest-code is exactly the precision penalty discretization pays for one-integer prediction.
Real-World Application: LeRobot policy training on the Hugging Face hub
Hugging Face's LeRobot library ships VQ-BeT as a first-class policy alongside ACT and Diffusion Policy, training it on uploaded SO-100 and ALOHA datasets so hobbyists can reproduce token-based manipulation on sub-$300 arms. The same discrete-token interface lets a policy trained on one community-contributed dataset be fine-tuned on another body without rewriting the action head, which is why the hub's leaderboards compare VQ-BeT and diffusion checkpoints on identical LIBERO splits.
Practical Recipe
Whether you reproduce VQ-BeT through LeRobot's hub or build the codebook from scratch, the same discipline keeps the comparison honest, so the recipe below front-loads the task contract before any model touches the data.
- Write the observation, action, and success metric before choosing a model.
- Build a baseline that is simple enough to debug by inspection.
- Add the library implementation only after the baseline behavior is understood.
- Record failures as structured cases: perception error, state error, planning error, control error, or evaluation error.
- Run at least one perturbation test before trusting the result.
The common mistake in VQ-BeT and discretized behavior modeling is to celebrate the component score before checking the closed-loop handoff. The failure usually appears at the boundary: stale state, wrong frame, delayed action, saturated actuator, or metric that ignores the real task cost.
A robot learning engineer applying vq-bet and discretized behavior modeling starts by recording the robot body, camera setup, action units, operator source, and split policy for every episode. That record makes it possible to compare ACT with a baseline without changing the task definition midstream.
A good embodied system makes vq-bet and discretized behavior modeling visible twice: once in the design sketch and once in the replay artifact. The second view keeps the first one honest.
Hierarchical and adaptive codebooks (2024-2025). Static VQ-VAE codebooks trained offline fail when a new robot body or task distribution shifts the motion manifold. Recent work from the Stanford IRIS lab (Shi et al., "Unleashing Large-Scale Video Generative Pre-training for Visual Robot Manipulation", 2024) and concurrent work on Residual VQ for robot actions uses multi-level residual quantization: a coarse code captures the motion category while one or two refinement codes reduce the positional error floor, pushing peg-insertion success rates past what a single-level codebook can achieve without abandoning the token-prediction interface.
Cross-embodiment motion token vocabularies (2024-2025). The Open X-Embodiment Collaboration's RT-X work (O'Neill et al., 2024) demonstrated that a shared discrete token vocabulary trained across 22 robot morphologies transfers zero-shot to held-out embodiments better than continuous-output baselines. The active research question is how to align codebook entries across bodies with different joint counts and action frequencies without collapsing diversity: robots with 6-DOF arms and 7-DOF arms should not share tokens for the same physical motion primitive if their kinematics differ by more than one degree of freedom.
Token-diffusion hybrids that close the precision gap (2025-2026). Several groups (including work from Berkeley's Robot Learning Lab) are combining a discrete coarse token selected by a transformer with a lightweight conditional diffusion step that refines the decoded chunk within a small continuous neighborhood around the selected codebook vector. The hybrid achieves near-diffusion contact precision on insertion tasks while keeping total inference latency under 10 ms, but the two-stage design reintroduces hyperparameter coupling between the codebook granularity and the diffusion step count.
Pause and predict
Before reading on, ask yourself: if you had to pick a single codebook size \(K\) for a robot you have never seen before, what would you choose, and what is your best guess for how often that choice would miss the right value by more than a factor of four? In practice, teams that have run this search across several tasks typically report missing by that margin more than half the time, though no controlled survey has measured this precisely. The lab exercise later in this section walks through exactly this search on synthetic data, so keep your guess in mind and check it there.
Open problem. No principled method yet determines the minimum codebook size \(K\) needed to achieve a target contact-precision threshold on an unseen task before collecting any demonstrations. Current practice (audit utilization, reduce \(K\) until entropy is high) is purely empirical and requires a full VQ-VAE training run per candidate \(K\). A geometry-based estimator that predicts required codebook size from a small set of passive observations of the task space could eliminate most of that search and is directly testable on the LIBERO and Open X-Embodiment datasets without new hardware.
Can you name the observation, state estimate, action, success metric, and most likely failure mode for vq-bet and discretized behavior modeling? If not, the system boundary is still too vague.
VQ-BeT and discretized behavior modeling becomes useful when it is tied to a closed-loop contract. In this Part V section on VQ-BeT and discretized behavior modeling, the contract names the observation stream, the state estimate, the action representation, the timing budget, and the evaluation artifact. Without that contract, a model can look capable in a notebook while failing the first time a sensor drops a frame or a controller saturates.
Separate the conceptual claim, the systems claim, and the evidence claim. A plausible mechanism, a clean interface, and a closed-loop result are different claims; the section should keep their evidence separate.
| Tool or Library | Role in the Topic | Builder Advice |
|---|---|---|
| Gymnasium | Standardized step/reset interface for VQ-BeT rollout loops | Use for single-robot manipulation benchmarks (FetchPickAndPlace, ShadowHandBlock) where a fixed 25 Hz action frequency matches the chunk boundaries expected by VQ-BeT's receding-horizon executor. |
| PettingZoo | Multi-agent observation routing when two robot arms share a codebook | Use when evaluating bimanual configurations such as ALOHA or GELLO where left-arm and right-arm tokens must stay synchronized; the parallel-env API prevents the observation timestamps from drifting between arms. |
| ROS 2 | Real-hardware deployment bridge between decoded action chunks and motor drivers | Use when moving a trained VQ-BeT policy from simulation to a Franka Panda or UR5: the ROS 2 action server enforces the 20 ms control loop deadline and raises a hardware fault before a saturated joint torque can damage the arm. |
| MuJoCo | Contact-accurate simulation for stress-testing codebook precision thresholds | Use for peg-insertion and screw-tightening tasks where 2 mm positional error from token quantization must be measured against ground-truth contact forces; MuJoCo's constraint solver produces physically consistent reaction forces that gym-style wrappers often drop. |
| LeRobot | VQ-BeT training pipeline with built-in LIBERO and Open X-Embodiment loaders | Use after the from-scratch codebook audit passes: LeRobot's vq_bet.vqvae.get_codebook_usage() call and its standardized episode schema let you swap between SO-100, ALOHA, and UMI datasets without rewriting the data loader. |
Start with a small baseline that logs inputs, outputs, units, timestamps, and termination conditions before moving to Gymnasium or PettingZoo. The library run should keep the same artifact schema, so the comparison remains a same-task evaluation.
- Write a one-paragraph task contract with observation, action, success, and failure fields.
- Start with the smallest simulator, dataset, or wrapper that exposes the task contract faithfully.
- Run one deterministic smoke test and one perturbation test before scaling.
- Save a single result artifact containing configuration, seed, metrics, videos or traces, and failure labels.
- Compare methods only when one script evaluates them on the same task panel.
When VQ-BeT and discretized behavior modeling fails, avoid labeling the whole method as weak. First assign the failure to perception, state estimation, planning, control, timing, data coverage, or evaluation. Then rerun one controlled perturbation that isolates the suspected cause. This pattern turns a disappointing rollout into a reusable diagnostic asset.
Review and Consolidation
VQ-BeT and discretized behavior modeling should be evaluated through four lenses: the learning objective, the robot interface, the data artifact, and the deployment failure mode. Action generators differ mainly in how they represent time, uncertainty, and multimodality across the next chunk of motion.
For VQ-BeT exposes codebook coverage, token reconstruction error, behavior switching, and discrete-action failure cases, define observations, action representation, dataset source, rollout evaluator, and failure labels before training. Then compare baseline and library implementation on the same configuration.
For VQ-BeT exposes codebook coverage, token reconstruction error, behavior switching, and discrete-action failure cases, each demonstration binds operator behavior, robot body, sensor calibration, action representation, and reset distribution. Changing one field creates a new evaluation contract.
| Agent Lens | Question To Answer | Concrete Evidence |
|---|---|---|
| Curriculum and depth | What concept is new here, and why does Part V need it? | A definition, a worked example, and a failure case tied to the perception-action loop. |
| Code and tools | Which maintained tool removes boilerplate after the from-scratch baseline? | ACT, Diffusion Policy, flow matching, VQ-BeT, ALOHA evaluated against the same task contract. |
| Data and evaluation | What distribution produced the behavior, and where can it break? | Train, validation, and stress splits with explicit robot, camera, timing, and license metadata. |
| Publication quality | Can the reader reproduce the claim without hidden context? | Captions, bibliography cards, cross-links, and a same-artifact audit trail. |
Do not claim that vq-bet and discretized behavior modeling improves robot learning unless the baseline and the proposed method share the same robot, task split, reset distribution, success metric, and random seed policy. Otherwise the comparison may be measuring dataset difficulty rather than method quality.
For VQ-BeT exposes codebook coverage, token reconstruction error, behavior switching, and discrete-action failure cases, judge the method by closed-loop recovery, latency, stability, contact behavior, and failure labels under the same robot, reset distribution, cameras, and evaluator.
Who: A robot learning engineer evaluating discrete behavior tokens with codebook coverage, action reconstruction error, and closed-loop correction on the same manipulation benchmark, robot, camera setup, and reset protocol.
Situation: The engineer needs to decide whether vq-bet and discretized behavior modeling is ready for a weekly policy comparison across 120 demonstrations and 30 held-out rollouts.
Decision: They keep the smallest runnable baseline for discrete behavior tokens with codebook coverage, action reconstruction error, and closed-loop correction, then compare the maintained implementation under the same manifest, seed, split, and rollout evaluator.
Result: The team gets one artifact for discrete behavior tokens with codebook coverage, action reconstruction error, and closed-loop correction with task success, intervention labels, timing violations, recovery behavior, and failure categories.
Lesson: discrete behavior tokens with codebook coverage, action reconstruction error, and closed-loop correction earns trust only when the data contract, action representation, and rollout evaluator are versioned together.
Before leaving this section, write one sentence that links vq-bet and discretized behavior modeling to each of these connected chapters: Chapter 21: Imitation Learning, Chapter 23: Teleoperation and Data Collection, Chapter 35: Robot Foundation Models and Cross-Embodiment Learning. If any link feels forced, the section needs a sharper boundary or a clearer prerequisite recap.
VQ-BeT and discretized behavior modeling is useful when it makes the perception-action loop more reliable, not when it merely adds a more impressive model name.
Design a method-matched experiment for VQ-BeT and discretized behavior modeling. Specify the environment, observation schema, action interface, metric, and one perturbation that targets the section's core assumption.
Lab: Watch quantization error grow as the codebook shrinks
Goal: measure empirically how codebook size \(K\) trades inference compactness against action reconstruction error, and find the smallest \(K\) that keeps error under a chosen contact budget.
Tools needed: Python with NumPy, scikit-learn (use KMeans as a stand-in VQ-VAE codebook), and Matplotlib. No GPU or robot required; runs in 15 to 30 minutes.
Steps: (1) Generate or load a few thousand 70-dimensional action chunks, for example by sampling 10-step windows of 7-DOF joint velocities from any LeRobot dataset, or by synthesizing four Gaussian motion clusters. (2) For each \(K\) in {16, 64, 256, 1024, 4096}, fit KMeans(n_clusters=K); the cluster centers are your codebook. (3) Assign every chunk to its nearest center and record the mean reconstruction error \(\frac{1}{N}\sum_i \|A_i - e_{j^*(i)}\|_2\). (4) Also record codebook utilization: the fraction of centers that win at least one chunk.
What to vary: \(K\), and the number of true motion clusters in the synthetic data. What to observe: reconstruction error should fall roughly as a power law in \(K\) while utilization drops once \(K\) exceeds the real number of motion primitives. The \(K\) where the error curve crosses your contact budget (say 2 mm) is the smallest codebook you can safely deploy, and the utilization drop visualizes the dead-code problem the section warns about.
Project Ideas
Beginner (weekend): Codebook coverage visualizer in MuJoCo. Collect 50 teleoperated demonstrations on a MuJoCo FetchPickAndPlace task, train a small VQ-VAE (K=128) using LeRobot's built-in loader, and plot which codebook entries are assigned at least once. The key challenge is understanding why low entropy in token assignments predicts failure on held-out rollouts before you ever run the policy on hardware.
Intermediate (1-2 weeks): VQ-BeT vs. Diffusion Policy on peg insertion. Using LeRobot with a MuJoCo or PyBullet peg-insertion task, train both policies on the same 200-episode dataset and measure per-step positional error against ground-truth contact forces for each; the key challenge is isolating whether VQ-BeT's success gap is caused by codebook granularity (reduce K and re-measure) or by the transformer head's token prediction accuracy. Deploy the winner via a ROS2 action server to a simulated UR5 arm to verify latency stays under 20 ms per chunk.
What's Next
This section grounded vq-bet and discretized behavior modeling in an explicit robot-data contract: observations, actions, demonstrations, evaluation splits, and failure labels. The next reading step is Section 22.7, where the same contract is carried into the next technique or chapter.
