Section 55.6: Industrial Fleets, Open-RMF, AMR Interoperability, And Operations

"A fleet is not many robots; it is one system whose slowest agreement sets the pace for all of them."

A Systems-Minded Embodied AI Agent

Why This Section Was Added

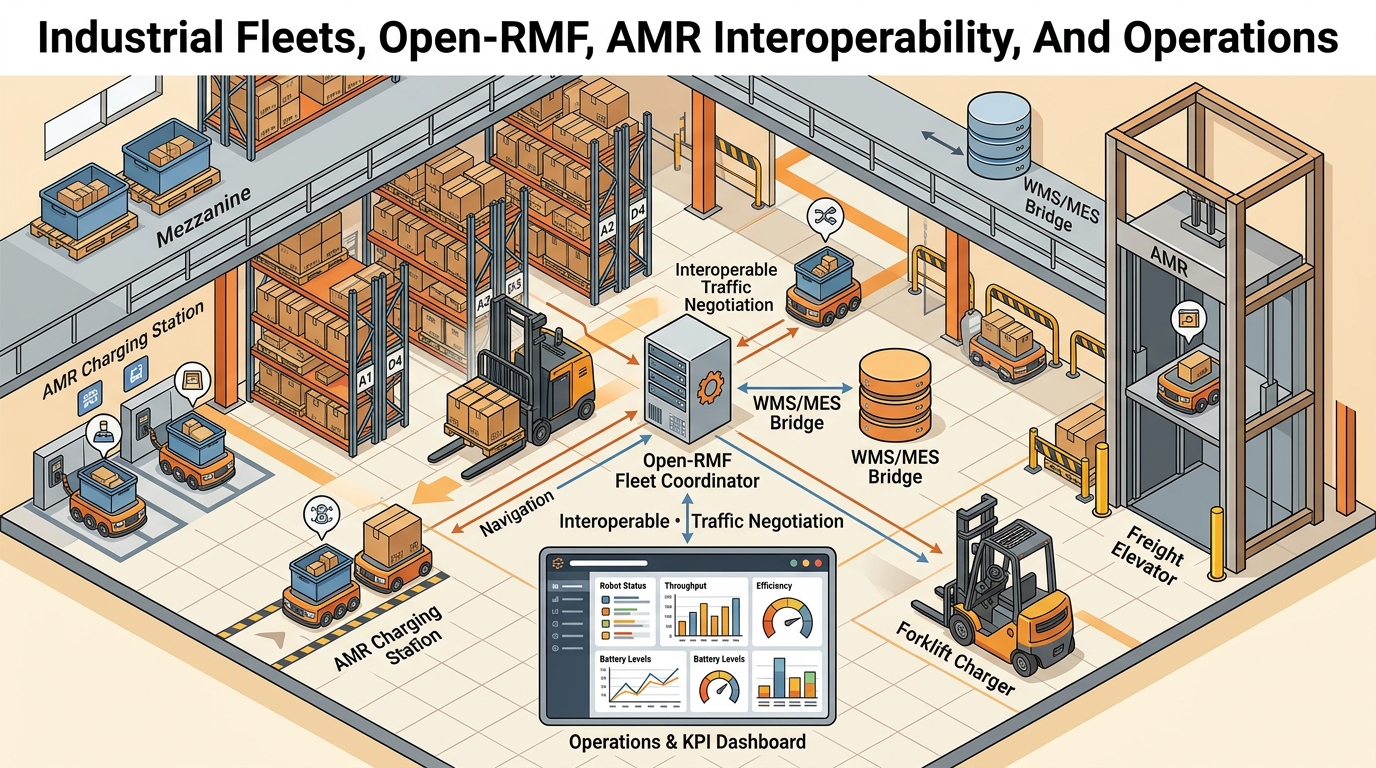

Figure 55.6.1 gives the field-facing mental model that orients the rest of this section, tracing how sensing, state, planning, control, safety, and evidence logging connect into one fleet architecture. This application layer closes the gap between textbook breadth and the daily needs of researchers and builders. In industrial fleet robotics, the core question is not whether one component scores well in isolation. The question is whether the system produces an action, a safety boundary, and an evidence artifact that another team can inspect.

The central contract is compact: define the operating domain, name the state variables, state the action interface, identify the safety monitor, and save the log that proves what happened. This is called the fleet evidence contract, and every serious embodied system eventually converges on it. A fleet that cannot produce its evidence contract on demand is not a deployed system; it is a field experiment without a witness. Every serious embodied system eventually becomes this contract, whether it is a drone, an autonomous vehicle, a humanoid, a mobile manipulator, an industrial fleet, or a simulator-first research platform.

Technical Core

For this section, the working mathematical object is:

$$KPI=(\text{throughput},\text{uptime},\text{interventions},\text{safety events},\text{SLA}).$$

The notation is a system contract, not a single loss function. It ties the learned or planned output to state, action, environment constraints, and measured evidence. A practitioner can deploy a diffusion-policy controller on MiR250 AMRs, or run a transformer-based task planner over Open-RMF's rmf_task API (the software interface Open-RMF exposes for submitting, tracking, and canceling fleet missions). Either architecture drops into the same KPI slots. Throughput and intervention rate stay the grounding metrics whether the planner is a learned policy, a rule-based scheduler, or a hybrid MILP solver, where MILP (Mixed-Integer Linear Programming) is an optimization method that assigns tasks to robots by solving for integer-valued decisions under linear constraints. The source of latency risk does change: a diffusion-policy inference step on a Jetson Orin typically takes 35-80 ms per action chunk (as of 2024). A 10 ms WMS bridge stall then compounds into a 90 ms effective cycle time, showing up as deeper dock-door queues rather than a raw CPU spike.

Scale amplifies this sharply. A single-robot pilot in a 500 m² lab accumulates roughly one unplanned intervention per eight-hour shift; the same routing logic on a 20-robot fleet in an 8,000 m² facility can, in practice, produce on the order of 14 interventions in 90 minutes, because contention, charger queues, and WMS timing errors compound superlinearly. The pilot needs zero architectural changes to reach 95% SLA, where the SLA (Service Level Agreement) is the contractual on-time delivery target the fleet must meet, such as 99.5% of dock handoffs completed on schedule. The fleet demands a dedicated watchdog, a charger-allocation priority queue, and a WMS bridge timing contract before SLA even clears 80%. As a rough rule of thumb, going from 1 robot to 20 behaves more like a 400x engineering problem than a 20x one in facilities with shared chargers and narrow aisles, because every robot can block every other; the exact multiplier depends on layout and contention points, but the superlinear direction holds generally.

Before tracing the mechanism, the failure it detects in one sentence: a traffic deadlock is a cycle of robots each waiting on a lane held by the next robot in the cycle, with no robot free to move; the "Common Pitfall" callout later in this section explains why that state is silent in per-robot logs, but the watchdog below is how a fleet-level monitor catches it as it happens.

Practical Stack

The fourth term in this section's title, Operations, is what the Deployment row of the checklist below actually names: monitoring, incident response, rollback, calibration checks, and maintenance cadence are the day-to-day operational practice that keeps the fleet evidence contract alive after go-live, not a one-time setup step.

Running that evidence loop by hand is instructive once, but each of its steps, fixed scenario panels, logged metrics, replay artifacts, maps to a maintained component in the industrial fleet tooling, so the next move is to name the stack that supplies them.

The practical tool stack for this section is: Open-RMF, MassRobotics AMR Interoperability, ROS-Industrial, WMS and MES bridges, ISO 3691-4, ANSI/RIA R15.08. The recommended path starts with a small inspectable baseline, then shifts to maintained libraries once the mechanism is clear. The shortcut is valuable because it handles optimized kernels, standard data formats, timing integration, visualization, and deployment hooks that hand code usually handles poorly.

Detecting a deadlock at the fleet level presumes the fleet manager can already read every robot's state in a comparable form, which is exactly the guarantee the cross-vendor status schema is meant to provide.

The MassRobotics AMR Interoperability Standard matters in embodied AI because physical robots from different manufacturers share the same floor, the same chargers, and the same safety zones. Without a common state schema, a fleet manager cannot tell whether a robot from vendor A that reports "idle" has truly stopped or merely paused mid-turn. That ambiguity causes real collisions and deadlocks, not just software errors. A robot that acts on stale or misread peer state can injure workers or damage goods, in ways a simulator bug never will.

Mechanically, the standard defines a JSON schema for periodic status broadcasts: each AMR publishes its robotId, pose, velocity, battery level, operational mode, and safety stop reason over a shared network topic at a fixed cadence (typically 1 Hz). The fleet manager subscribes to all robots on that topic and builds a unified world model. No vendor-specific SDK is needed at the orchestration layer; the schema is the contract. Figure 55.6.3 illustrates this read-only broadcast pattern: each vendor AMR publishes its status to the shared topic, the fleet manager subscribes to build the unified world model, and task dispatch remains a separate vendor-specific adapter problem.

# Build one application evidence card for Section 55.6.
from dataclasses import dataclass, asdict

@dataclass
class ApplicationEvidence:
    section: str
    operating_domain: str
    state_action_contract: str
    tool_stack: str
    perturbation: str
    metric: str
    replay_artifact: str

    def as_row(self) -> dict[str, object]:
        return asdict(self)

card = ApplicationEvidence(
    section="55.6",
    operating_domain="industrial fleet robotics",
    state_action_contract="frames, units, rates, limits, safety monitor",
    tool_stack="Open-RMF, MassRobotics AMR Interoperability, ROS-Industrial, WMS and MES bridges, ISO 3691-4, ANSI/RIA R15.08",
    perturbation="traffic deadlock",
    metric="same-panel task success plus safety and recovery labels",
    replay_artifact="config, log, metric output, and failure case",
)
print(card.as_row())

{'section': '55.6', 'operating_domain': 'industrial fleet robotics', 'state_action_contract': 'frames, units, rates, limits, safety monitor', 'tool_stack': 'Open-RMF, MassRobotics AMR Interoperability, ROS-Industrial, WMS and MES bridges, ISO 3691-4, ANSI/RIA R15.08', 'perturbation': 'traffic deadlock', 'metric': 'same-panel task success plus safety and recovery labels', 'replay_artifact': 'config, log, metric output, and failure case'}

The expected output is a fleet evidence card with stable field names that operations software, replay tools, and audit scripts can parse without guessing. In practice, seeing traffic deadlock tied to one metric line and one replay artifact tells the team whether the interoperability stack exposed congestion cleanly or hid it behind vendor-specific logs.

Recipe For Builders

1. Write the operating-domain card before training, tuning, or route planning.
2. Choose a baseline that is simple enough to debug by eye.
3. Add the maintained tool path and keep the output schema identical.
4. Run one nominal case, one degraded-sensing case, one recovery case, and one safety-boundary case.
5. Ship the result only with logs, configuration, metric code, and a replayable failure case.
