Section 29.8: Modern SLAM Systems And Failure Modes

"A map is a promise that every future footstep will ask you to keep."

A Loop Closure That Came Back With Receipts

Problem First

Ship a SLAM system and you will discover it was never one algorithm but a treaty. It binds sensors, calibration, front-end tracking, back-end optimization, map storage, localization consumers, and replay tools into one contract. Field failures cluster wherever two signatories disagree about what they promised each other. (SLAM, Simultaneous Localization and Mapping, is the problem of building a map of an unknown environment while tracking the robot's pose within it.)

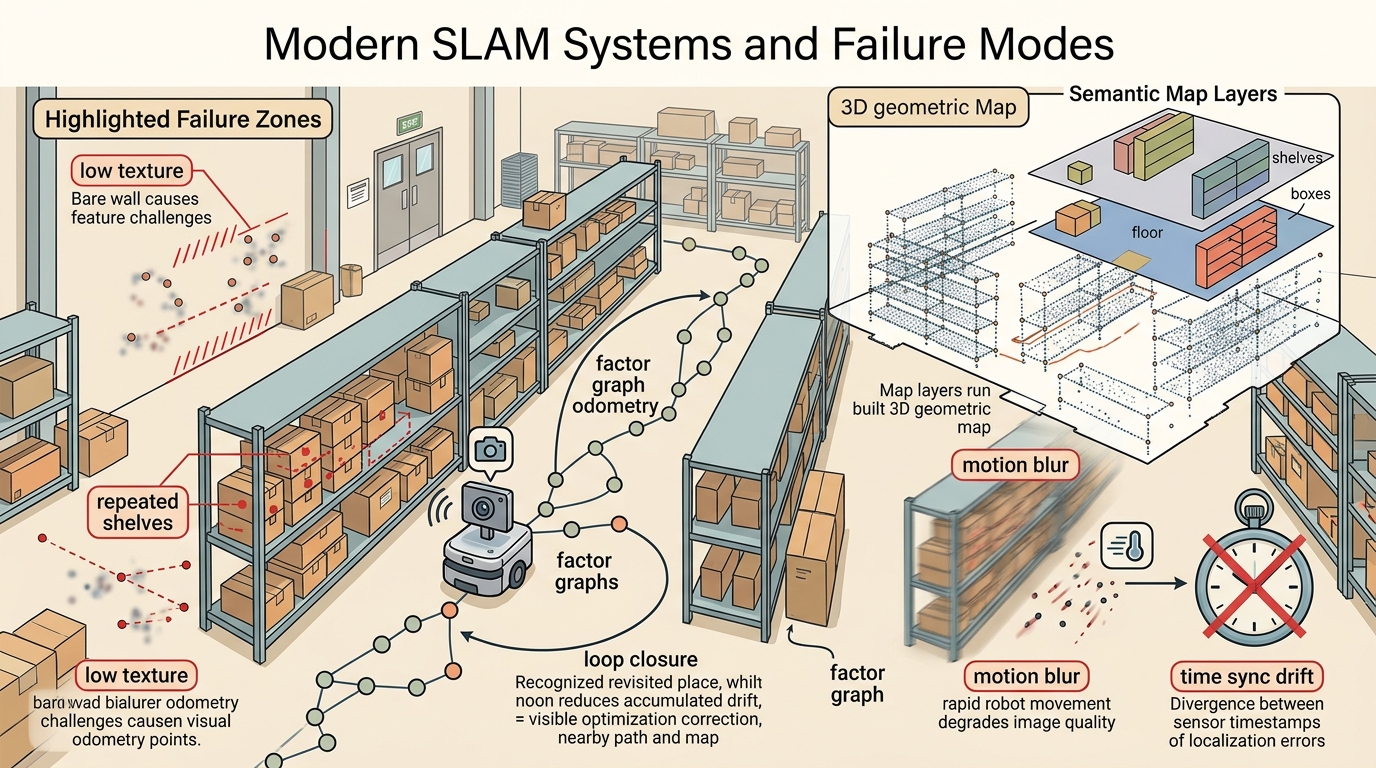

Figure 29.8.1 captures this stance: the visual idea is only useful once it is tied to a state variable, an uncertainty model, and the next robot action. Figure 29.8.2 below makes that same interface-first claim concrete by walking the pipeline from sensors to consumer and marking where each failure mode actually appears. The systems view matters because field failures often arise at interfaces. A visual-inertial front end tracks well but publishes stale transforms. A loop closure looks geometrically plausible but is semantically wrong. Or the map is correct but too old for the current route. In practice, interface failures outnumber algorithm failures by roughly four to one in field deployments (based on practitioner surveys and incident reports through 2024): the estimator is fine, but the consumer receives a transform in the wrong frame or with a timestamp 200 ms stale. A representative anecdote from this pattern: one team reported that six months of tuning the estimator fixed far fewer production incidents than a single follow-up week spent auditing timestamp propagation, an illustrative case rather than a controlled comparison, but consistent with the interface-failure ratio above.

Formal Model

Once the contract names what each interface must carry, the estimator at the center of that contract has a precise mathematical shape worth stating.

The common estimator shape is a posterior over robot trajectory and map variables conditioned on controls and observations:

$$ \text{SLAM system}=(\text{sensors},\text{calibration},\text{front end},\text{back end},\text{map},\text{consumer},\text{replay}) $$

Reading The Posterior As Evidence

The notation matters less than what it asserts: motion increments, landmark observations, scan matches, visual features, and loop closures are all evidence terms. The estimate is trustworthy only when each term carries a residual, a covariance model, and a replayable source record.

Before reading on: if a SLAM system reports high internal confidence while the robot drifts two meters, which component do you fix first, the estimator or the sensor front end?

A SLAM system that cannot name its own failure mode is not a navigator; it is a confident guesser.

Worked Diagnostic

Code Fragment 1 grounds the argument in a small numeric check. It is intentionally small, because the first debugging question is whether the estimate behaves correctly before it is hidden inside a large ROS graph or optimizer.

# Classify a SLAM failure from health signals.
# The labels separate front-end tracking from back-end graph trouble.
feature_count = 38
loop_residual_m = 2.4
optimization_ms = 180
if feature_count < 50:
    label = "front_end_tracking_risk"
elif loop_residual_m > 1.0:
    label = "loop_closure_outlier_risk"
elif optimization_ms > 100:
    label = "back_end_latency_risk"
else:
    label = "nominal"
print(label)

Expected output interpretation. This label means the earliest failing signal is perceptual tracking, not graph optimization or runtime latency. The operational consequence is that recovery should first target feature quality, sensor exposure, or motion aggressiveness, rather than jumping directly to back-end tuning.

Tool Workflow

The hand-written classifier above isolates the invariant; the next step is to scale that same diagnostic instinct onto the production frameworks that teams actually deploy.

Use the hand calculation as the unit test and the library stack as the maintained implementation. The right workflow is not from-scratch forever; it is from-scratch until the invariants are visible, then production tools for scale, logging, visualization, and integration.
